GTX-500
A 500 kg industrial AMR with in-place rotation — built for congested shop floors, narrow aisles and mixed human-robot traffic.
- Payload
- 500 kg1,100 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
Industrial AMRs
GTX Series — industrial AMRs
High-capacity autonomous mobile robots that move pallets, racks and heavy industrial loads up to 2 tonnes — without forklifts.
Download the GTX Series datasheet (PDF, 228 KB)
One platform, 4 payload classes
The GTX Series is built for high-capacity industrial material handling across manufacturing plants and warehouses. Designed for precision, stability and adaptability, GTX robots optimise warehouse execution and in-plant logistics. With four payload configurations on one platform, GTX delivers scalable automation for demanding industrial workflows.
- Four payload classes: 500, 1,000, 1,500 and 2,000 kg on one platform
- Multi-LiDAR and depth-camera perception, configurable per application
- Low 329 mm deck height for conveyors and pallet interfaces
- Zero-radius in-place rotation; 1,100 mm minimum aisle
GTX Series models
GTX-1000
A one-tonne AMR for standard pallets, bins and industrial loads — for factories where forklifts are inefficient or unsafe for repetitive moves.
- Payload
- 1,000 kg2,205 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
GTX-1500
Pallets, racks, carts and payloads up to 1.5 tonnes for high-throughput warehouse and manufacturing operations.
- Payload
- 1,500 kg3,305 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
GTX-2000
The heaviest GTX: two-tonne pallets, racks and industrial loads moved autonomously, on the same compact GTX platform.
- Payload
- 2,000 kg4,410 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
GTX Series at a glance
| Specification | GTX-500 | GTX-1000 | GTX-1500 | GTX-2000 |
|---|---|---|---|---|
| Rated payload | 500 kg1,100 lb | 1,000 kg2,205 lb | 1,500 kg3,305 lb | 2,000 kg4,410 lb |
| Max speed | 1.2 m/s3.9 ft/s | 1.2 m/s3.9 ft/s | 1.2 m/s3.9 ft/s | 1.2 m/s3.9 ft/s |
| Runtime | 8 h | 8 h | 8 h | 8 h |
| Charge time | 4 h | 4 h | 4 h | 4 h |
| Dimensions (L × W × H) | 1,240 × 751 × 329 mm48.8 × 29.6 × 13 in | 1,240 × 751 × 329 mm48.8 × 29.6 × 13 in | 1,240 × 751 × 329 mm48.8 × 29.6 × 13 in | 1,240 × 751 × 329 mm48.8 × 29.6 × 13 in |
| Min aisle width | 1,100 mm43.3 in | 1,100 mm43.3 in | 1,100 mm43.3 in | 1,100 mm43.3 in |
| Battery | LFP (LiFePO4), 48 V DC, 45 Ah | LFP (LiFePO4), 48 V DC, 45 Ah | LFP (LiFePO4), 48 V DC, 45 Ah | LFP (LiFePO4), 48 V DC, 45 Ah |
| Turning | Zero-radius in-place rotation | Zero-radius in-place rotation | Zero-radius in-place rotation | Zero-radius in-place rotation |

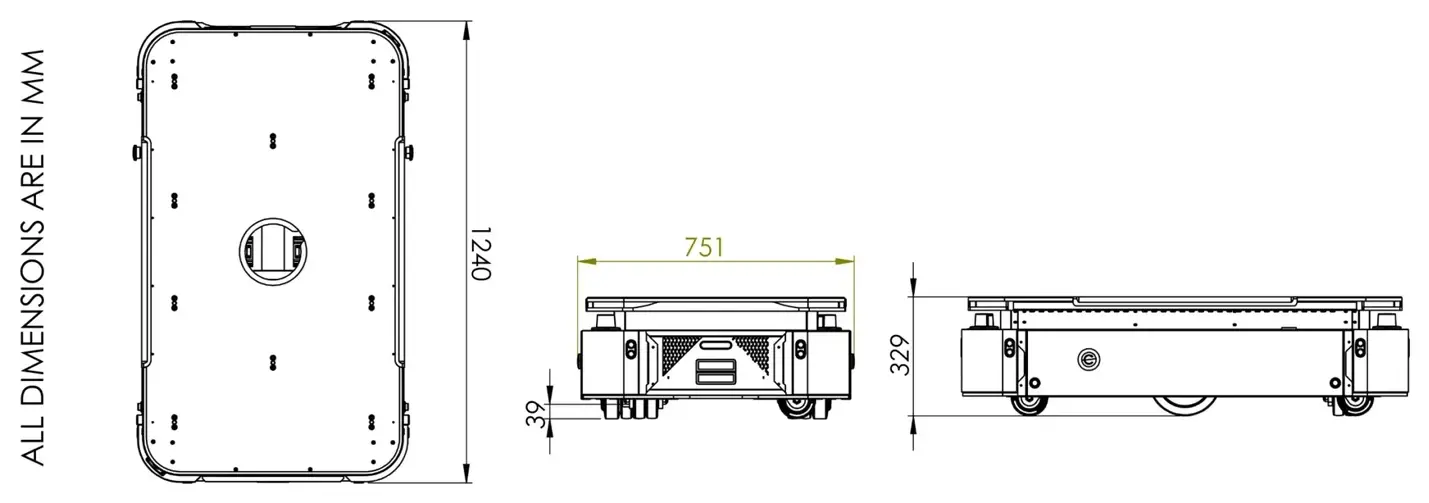

Technical drawing
Side, front and top views. All dimensions in millimetres.
Downloads
Frequently asked questions
Which models are in the GTX Series?
The GTX Series has 4 models: GTX-500 (500 kg), GTX-1000 (1,000 kg), GTX-1500 (1,500 kg), GTX-2000 (2,000 kg). They share the same platform, software and accessories, so a mixed fleet is managed as one.
How do I choose between GTX-500, GTX-1000, GTX-1500, GTX-2000?
Choose by your heaviest regular load, including the top module and container. If loads vary, size for the heaviest frequent move. The fleet calculator recommends a model and fleet size from your payload, distance and trips per hour.
How fast are GTX Series robots and how long do they run?
GTX-500: 1.2 m/s, 8 h runtime, 4 h charge; GTX-1000: 1.2 m/s, 8 h runtime, 4 h charge; GTX-1500: 1.2 m/s, 8 h runtime, 4 h charge; GTX-2000: 1.2 m/s, 8 h runtime, 4 h charge. Actual figures depend on payload, floor conditions and duty cycle.
Does the GTX Series need tape, magnets or QR codes on the floor?
No. The GTX Series navigates autonomously with SLAM and visual localisation, using the building’s existing features. A guided mode that follows magnetic strip or QR codes is also available where a fixed path is preferred.
Can the GTX Series work with our ERP, MES or WMS?
Yes. GT Studio, GOAT’s fleet management platform, integrates with ERP, MES, WMS and PLCs through APIs, webhooks and industrial protocols, and supports VDA 5050 v2.0, v2.1 and v3.0 for mixed fleets.
