GT-100
The compact entry point to automation: a 100 kg AMR for tight aisles, labs and congested shop floors where larger AMRs or forklifts are impractical.
- Payload
- 100 kg220 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
Intralogistics AMRs
GT Series — intralogistics AMRs
Compact autonomous mobile robots for continuous material movement — bins, totes, racks and WIP — across shop floors and warehouses.
Download the GT Series datasheet (PDF, 219 KB)
One platform, 3 payload classes
The GT Series is GOAT Robotics’ versatile AMR platform designed for continuous industrial material movement. Engineered for 24/7 operations, it supports simple transport tasks, complex workflows and production-line integration. Powered by centralised fleet management in GT Studio, GT Series enables reliable, scalable automation across manufacturing and warehouse environments.
- Three payload classes: 100, 250 and 400 kg on one 845 × 625 mm footprint
- SLAM + visual navigation — no tape, magnets or QR markers
- Zero-radius in-place rotation for tight aisles (950 mm minimum)
- Conveyor, lifting, towing, shelf and cobot top modules
GT Series models
GT-250
More payload, same agility: 2.5× the payload of GT-100 on the same compact footprint, for factories that outgrow light AMRs but don’t need heavy-duty platforms.
- Payload
- 250 kg550 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
GT-400
One of the highest payloads in the compact AMR class — heavier bins, racks and assemblies without the size or cost of a GTX platform.
- Payload
- 400 kg880 lb
- Max speed
- 1.2 m/s3.9 ft/s
- Runtime
- 8 h
- Positioning
- ±50 mm±2 in
GT Series at a glance
| Specification | GT-100 | GT-250 | GT-400 |
|---|---|---|---|
| Rated payload | 100 kg220 lb | 250 kg550 lb | 400 kg880 lb |
| Max speed | 1.2 m/s3.9 ft/s | 1.2 m/s3.9 ft/s | 1.2 m/s3.9 ft/s |
| Runtime | 8 h | 8 h | 8 h |
| Charge time | 4 h | 4 h | 4 h |
| Dimensions (L × W × H) | 845 × 625 × 300 mm33.3 × 24.6 × 11.8 in | 845 × 625 × 300 mm33.3 × 24.6 × 11.8 in | 845 × 625 × 300 mm33.3 × 24.6 × 11.8 in |
| Min aisle width | 950 mm37.4 in | 950 mm37.4 in | 950 mm37.4 in |
| Battery | LFP (LiFePO4), 48 V DC, 30 Ah | LFP (LiFePO4), 48 V DC, 30 Ah | LFP (LiFePO4), 48 V DC, 30 Ah |
| Turning | Zero-radius in-place rotation | Zero-radius in-place rotation | Zero-radius in-place rotation |

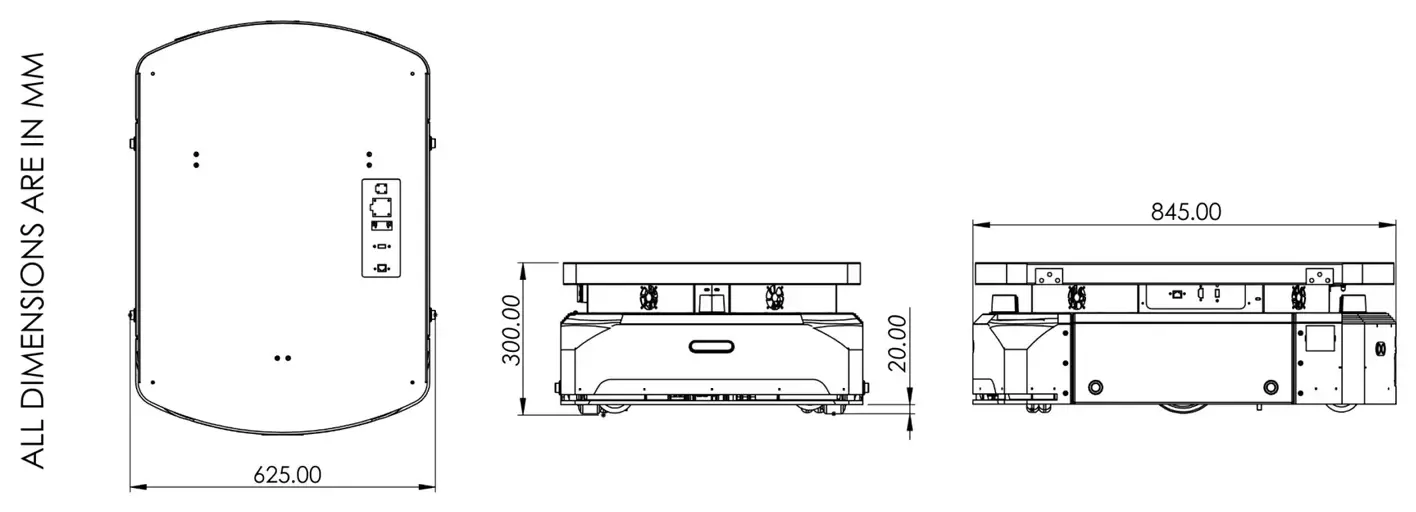

Technical drawing
Side, front and top views. All dimensions in millimetres.
Downloads
Frequently asked questions
Which models are in the GT Series?
The GT Series has 3 models: GT-100 (100 kg), GT-250 (250 kg), GT-400 (400 kg). They share the same platform, software and accessories, so a mixed fleet is managed as one.
How do I choose between GT-100, GT-250, GT-400?
Choose by your heaviest regular load, including the top module and container. If loads vary, size for the heaviest frequent move. The fleet calculator recommends a model and fleet size from your payload, distance and trips per hour.
How fast are GT Series robots and how long do they run?
GT-100: 1.2 m/s, 8 h runtime, 4 h charge; GT-250: 1.2 m/s, 8 h runtime, 4 h charge; GT-400: 1.2 m/s, 8 h runtime, 4 h charge. Actual figures depend on payload, floor conditions and duty cycle.
Does the GT Series need tape, magnets or QR codes on the floor?
No. The GT Series navigates autonomously with SLAM and visual localisation, using the building’s existing features. A guided mode that follows magnetic strip or QR codes is also available where a fixed path is preferred.
Can the GT Series work with our ERP, MES or WMS?
Yes. GT Studio, GOAT’s fleet management platform, integrates with ERP, MES, WMS and PLCs through APIs, webhooks and industrial protocols, and supports VDA 5050 v2.0, v2.1 and v3.0 for mixed fleets.
